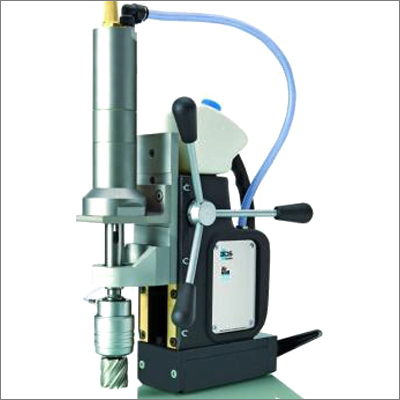

Pneumatic Drilling Machine

Pneumatic Drilling Machine
Pneumatic Drilling Machine
Product Code : AirMAB 5000
Product Description

Pneumatic Drilling Machine

Keeping track of the current market growth, we are manufacturing, exporting and supplying an intricately engineered range of Pneumatic Drilling Machine. Offered in various of technical specifications in tandem with the application requirements of our esteemed clients, this drilling machine is fabricated by making use top notch quality components and innovative technology. In addition to this, machine offered by us is extensively used to drill heavy components and metal sheets. We provide this Pneumatic Drilling Machine to our customers at market leading prices.

Features:

  • Robust construction
  • High efficiency
  • Noise-free operation
  • Low maintenance

Pneumatic Drilling Machine

  • Max drilling: 35 mm
  • Max depth: 55 mm

Advantages:

  • High-performance vane motor
  • Motor approved according to Ex class - Ex II 2G T4 IIC D110oC
  • With powerful permanent magnet

Specification

Motor output

830 Watt

Nominal torque

27 Nm

Air consumption

1000 I/min

Stroke

160 mm

Swivel base, adjustment Feature:-

Magnet size

90x190x60 mm

Weight

17.5 kg

Direct arbor

-

Industrial arbor

-

Quick change drill chuck system

KEYLESS, 19 mm Weldon (3/4'')

Morse taper

MT 2

Speed range 1

Min 290 min-1, max 575 min-1

Speed range 2

-

Speed range 3

-

Speed range 4

-

Permanaent internal lubrication

Yes

Friction clutch


Torque control

-

Full wave control electronics

-

Magnet indicator

-

Overheating protection

-

CW/CCW rotation

-

Carbon brush wear control

-

Core drill short 30 mm

12-35 mm

Core drill long 55 mm

12-35 mm

Core drill extra-long 110 mm

-

Twist drilling

< 23mm

Reaming

-

Countersinking

-

Thread cutting

-

Scope of delivery

  • 1 Magnetic core drilling machine
  • 1 Quick change drill chuck system
  • KEYLESS, 19 mm Weldon (3/4'')
  • 1 Ejector pin ZAK 075 + 100
  • 1 Hard protective case
  • 1 Safety chain
  • 1 Drill drift MT 2
  • 1 Operating manual
