Magnetic Base Drilling Machine Made in Germany

Magnetic Base Drilling Machine Made in Germany
Magnetic Base Drilling Machine Made in Germany
Product Code : MAB 1300
Brand Name : BDS Germany
Product Description

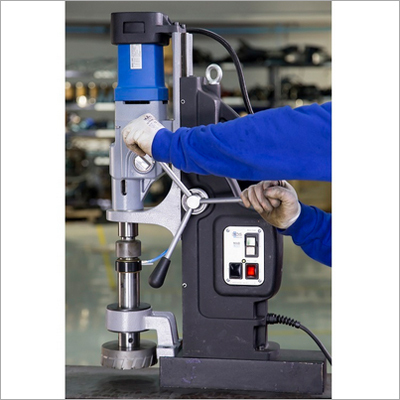

Magnetic Base Drilling Machine

Since our commencement in this sphere, we are engaged in manufacturing, supplying, trading and exporting an extensive assortment of Magnetic Base Drilling Machine. Considered as a most powerful machine, it shows drilling of size 130 mm and a cutting depth of 110 mm. The power assist servo assisted drilling can be done with easy one hand feed. To provide a quality proven range, this Magnetic Base Drilling Machine is manufactured as per set industrial quality standards using premium quality of raw materials.

Features:

  • Precisely engineered
  • High capacity
  • Avoid rust formation

SCOPE OF DELIVERY

  • 1 Magnetic core drilling machine
  • 1 Carry case on wheels
  • 1 Safety chain
  • 1 Offset screwdriver SW 4, 6, 8
  • 1 Drill drift MT 4
  • 1 Ejector pin ZAK 075 + 090
  • 1 Ejector pin ZAK 100 + 120
  • 1 Bushing ZAP 200, from 32 mm
  • Weldon to 19 mm Weldon
  • 1 Operating manual
SPECIFICATION

Core drill short 30 mm:

12 - 130 mm

Core drill long 55 mm:

12 - 120 mm

Core drill overlong 75 mm:

18 -120 mm

Core drill extra-long 110 mm:

20 - 120 mm

Twist drilling:

45 mm

Reaming:

50 mm

Countersinking:

80 mm

Thread cutting:

M42

Motor output:

2300 Watt

Voltage:

230 V AC, 50-60 Hz

Stroke without steady:

310 mm

Stroke with steady:

85 mm

Swivel Base, adjustment features:

Magnet size:

120 x 360 x 65 mm

Weight:

51 kg

Direct arbor:

32 mm Weldon (1 1/4")

Morse taper:

MT 4

Speed range 1:

30-80 min-1

Speed range 2:

50 -120 min-1

Speed range 3:

130- 350 min-1

Speed range 4:

210 -550 min-1

Permanent internal lubrication:

Yes

Torque control:

Yes

Full wave control electronics:

Yes

Magnet indicator:

Yes

Overheating protection:

Yes

CW/CCW rotation:

Yes

Carbon brush wear control:

Yes

Technical specification

Model

MAB 1300

Core Drilling Diameter

130mm

Cutting Depth

110mm

Twist drilling diameter

45mm

Tapping

M 42

Speed

4 Speed

Morse Taper

MT4

Swivel base

No

Price

3,60,000.00
